PCIe M.2固态硬盘

PCIe SSD 300S

PCIe M.2固态硬盘

PCIe SSD 300S

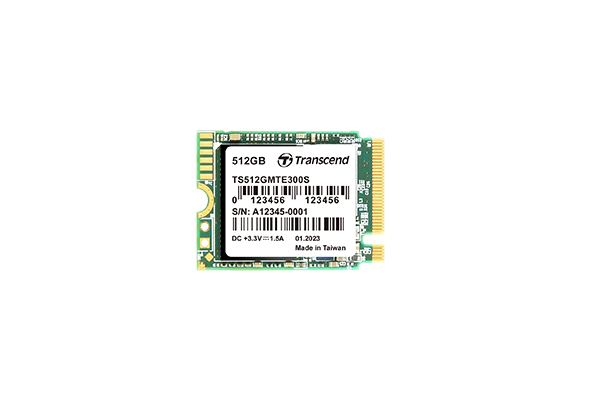

Transcend's PCIe M.2 SSD MTE300S has a compact form factor and high-quality 3D NAND flash, making it easy to upgrade Ultrabooks, lightweight notebooks, tablets, and handheld gaming PCs. It is designed with multiple firmware optimization technologies, including SLC caching and LDPC ECC mechanism, which improve storage reliability and extend the drive lifespan. The MTE300S is a great choice for boosting the performance of modern work platforms.

Ready for the Best

Featuring the M.2 standard (30mm), a fast PCIe Gen3x4 interface, up to 2,000 MB/s read and 1,650MB/s write speeds, Transcend’s MTE300S SSD is more advanced and efficient than a SATA SSD. The MTE300S delivers higher speeds without sacrificing power to your ultra-thin devices.

Optimized for Small, Thin Devices

At just 30mm in length, the MTE300S SSD is ideal for Ultrabooks, lightweight notebooks, tablets, and handheld gaming PCs. Thinner and lighter than normal hard drives, the MTE300S SSD gives your computer a much-needed boost while saving space!

High Productivity Anytime, Anywhere

Dedicated to maximizing system performance, the MTE300S SSD features 4K random file read and write speeds of up to 280,000 IOPS. It delivers faster loading and response times when using applications that require high graphics or heavy computing.

Be Bold, Save More.

Built with high-quality 3D NAND flash, the MTE300S SSD unleashes up to 1TB of capacity for your computer, adding more storage space and enhancing computing efficiency.

Always Reliable, Always Evolving.

Despite its extra-small dimensions, the MTE300S SSD contains advanced features that ensure secure data storage and a longer lifespan.

SSD Scope Software

Transcend SSD Scope’s user-friendly software has tools that make it easy to ensure your Transcend SSD always remains in tip-top shape for whenever you need it.

Learn more

Guaranteed Quality

Transcend’s solid state drives are built according to the highest standards and rigorously tested to ensure outstanding quality, performance, and reliability.

规格

外观

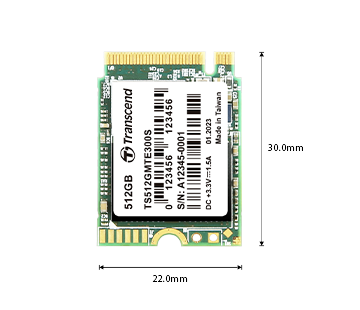

规格	M.2 2230
尺寸	单面的: 30.0 mm x 22.0 mm x 2.23 mm (1.18" x 0.87" x 0.09") 双面的: mm x mm x mm (" x " x ")
重量	4 g (0.14 oz)
界面
总线接口	NVMe PCIe Gen3 x4
存储
Flash类型	3D闪存
容量	256 GB 512 GB 1 TB
操作环境
工作温度	0°C (32°F) ~ 70°C (158°F)
工作电压	3.3V±5%
效能
连续读写速度 (CrystalDiskMark)	TB 高达 / MB/s TB 高达 / MB/s TB 高达 / MB/s 1 TB 高达 2,000/1,650 MB/s 512 GB 高达 2,000/1,100 MB/s 256 GB 高达 2,000/950 MB/s GB 高达 / MB/s GB 高达 / MB/s GB 高达 / MB/s
4K随机读写速度(IOmeter)	TB 高达 / IOPS TB 高达 / IOPS TB 高达 / IOPS 1 TB 高达 120,000/280,000 IOPS 512 GB 高达 90,000/190,000 IOPS 256 GB 高达 90,000/220,000 IOPS GB 高达 / IOPS GB 高达 / IOPS GB 高达 / IOPS
写入兆位元组(TBW)	TB TBW TB TBW TB TBW 1 TB 400 TBW 512 GB 200 TBW 256 GB 100 TBW GB TBW GB TBW GB TBW
平均故障间隔(MTBF)	2,000,000 小时
每日全盘写入次数(DWPD)	0.21 (5 年)
备注	传输速度会因您的系统效能（硬件、软件、使用方式、产品容量）而有所不同。用于评估DWPD的工作负载可能与实际工作负载不同，实际工作负载可能因（硬件、软件、使用情况、产品容量）而异。写入兆位元组（TBW)数值以该系列产品最高容量为主。部分主板的M.2接孔仅提供PCIe x2通道，此会影响固态硬盘传输效能。
保修
安规认证	CE UKCA FCC BSMI KC RCM
保修	五年有限保修
保修政策	更多创见产品保修政策，请点选这里。如产品于保修范围内在SSD Scope的健康度显示为0%时，则不适用。
系统需求
操作系统	Microsoft Windows 7 或更新版本 Linux Kernel 2.6.31或更新
备注	本固态硬盘仅兼容于搭载M key插槽的主机平台，不适合于B key插槽。插入不当可能导致设备异常。更多资讯，请点选这里。
技术
S.M.A.R.T.
智能回收算法 (Advanced Garbage Collection)
RAID Engine数据保护机制	-
LDPC除错机制
DRAM高速缓存	-
