PCIe M.2固态硬盘

PCIe SSD 260S

PCIe M.2固态硬盘

PCIe SSD 260S

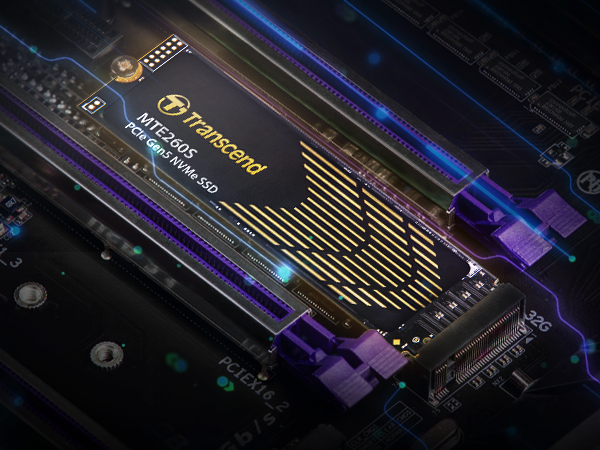

Transcend’s PCIe Gen5 SSD MTE260S is built for next-generation speed and reliability, featuring the latest PCI Express® Gen5 x4 interface, advanced 3D NAND flash, and DDR4 DRAM cache. Powered by a low-power controller and enhanced with a graphene heatsink, it delivers exceptional speed, stability, and efficiency. Whether you're immersed in AAA gaming, handling 4K/8K video production, or running demanding AI applications, the MTE260S ensures ultra-fast loading and instant responsiveness—unlocking the full potential of your system.

Next-Level Speed Starts Here.

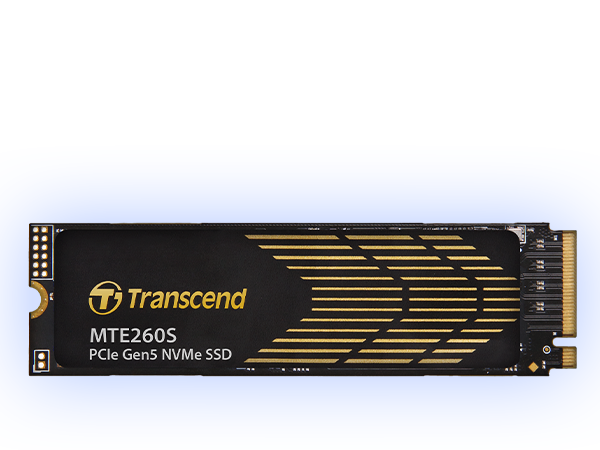

Transcend's PCIe SSD MTE260S complies with the NVMe 2.0 standard, supporting the PCIe™ Gen5 x4 interface, delivering sequential R/W speeds to 14,000/11,000 MB/s, and random speeds to 1,400K IOPS, providing captivating performance and response times for high-end gaming computers and AI-powered systems.

Note: Performance is based on CrystalDiskMark v6.0.2.

PCIe 5.0: Beyond Fast.

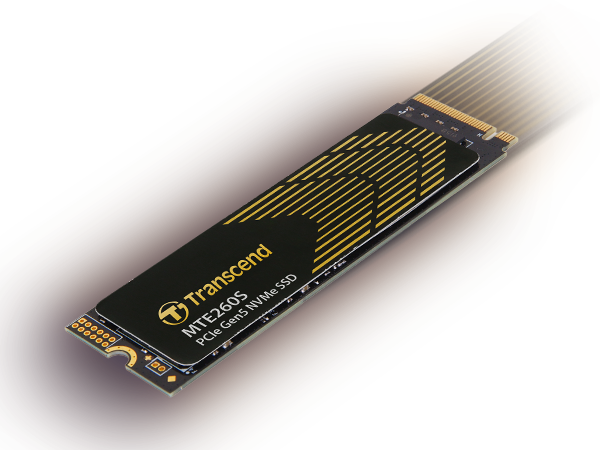

Transcend's MTE260S features the new PCIe 5.0 specification, supporting a bandwidth of 32 GT/s per lane. Backwards compatible with PCIe 4.0, PCIe 5.0 unleashes higher transfer speeds and guarantees lower system latency. For advanced gamers, this means a more seamless and immersive experience.

Cool Speed. Low Power.

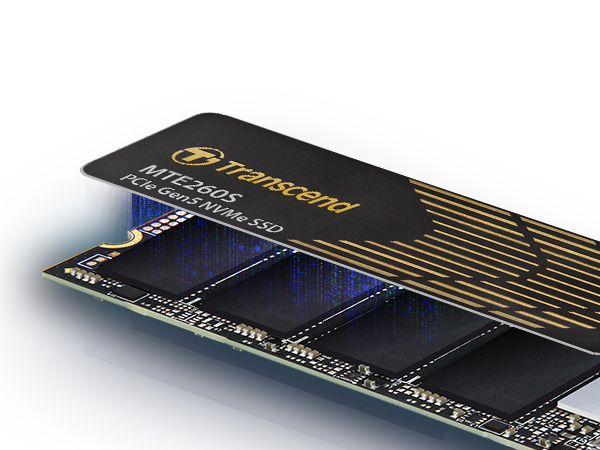

The Transcend PCIe SSD MTE260S features a cutting-edge 6nm low-power controller that ensures long-lasting power efficiency and reduced heat generation. Combined with an integrated graphene heatsink, it enhances thermal dissipation to maintain stable, high-speed performance. Whether you're binge-watching, editing videos, or diving into AAA gaming titles, the MTE260S stays cool and efficient—no thermal throttling, no power spikes, just seamless performance.

More Space. More Possibilities.

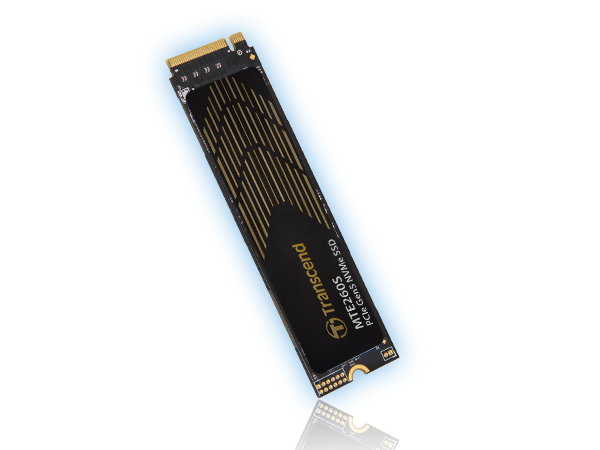

Featuring the M.2 2280 form factor, Transcend's MTE260S is available in capacities of up to 2TB, giving users plenty of space to store multiple blockbuster games.

Next-Gen Speed. Next-Level Play.

Experience ultra-fast load times, seamless open-world rendering, and zero lag with the PCIe SSD MTE260S. Designed for next-gen gaming, it keeps you ahead of the action—no waiting, no stuttering, just pure performance.

SSD Scope Software

Transcend's SSD Scope is an advanced, user-friendly software that makes it easy to monitor the condition and optimize the performance of your Transcend SSD, ensuring that it remains healthy and continues to run fast and error-free.

Learn more

Guaranteed Quality

The PCIe SSD MTE260S is covered by a five-year limited warranty. To ensure the utmost level of quality, Transcend SSDs undergo rigorous testing at all stages of production, including tests for vibration, temperature and humidity, speed, and functionality.

规格

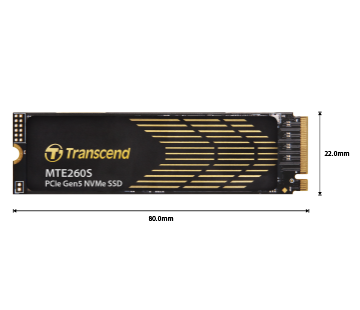

外观
规格	M.2 2280
尺寸	80 mm x 22 mm x 3.77 mm (3.15" x 0.87" x 0.15")
重量	10 g (0.35 oz)
散热片类型	石墨烯散热片
界面
总线接口	NVMe PCIe Gen5 x4
存储
Flash类型	3D闪存
容量	2 TB
操作环境
工作温度	0°C (32°F) ~ 70°C (158°F)
工作电压	3.3V±5%
效能
连续读写速度 (CrystalDiskMark)	TB 高达 / MB/s 2 TB 高达 14,000/11,000 MB/s TB 高达 / MB/s TB 高达 / MB/s GB 高达 / MB/s GB 高达 / MB/s GB 高达 / MB/s GB 高达 / MB/s GB 高达 / MB/s
4K随机读写速度(IOmeter)	TB 高达 / IOPS 2 TB 高达 1,400,000/1,100,000 IOPS TB 高达 / IOPS TB 高达 / IOPS GB 高达 / IOPS GB 高达 / IOPS GB 高达 / IOPS GB 高达 / IOPS GB 高达 / IOPS
写入兆位元组(TBW)	TB TBW 2 TB 1,500 TBW TB TBW TB TBW GB TBW GB TBW GB TBW GB TBW GB TBW
平均故障间隔(MTBF)	2,000,000 小时
每日全盘写入次数(DWPD)	0.411 (5 年)
备注	传输速度会因您的系统效能（硬件、软件、使用方式、产品容量）而有所不同。用于评估DWPD的工作负载可能与实际工作负载不同，实际工作负载可能因（硬件、软件、使用情况、产品容量）而异。写入兆位元组（TBW)数值以该系列产品最高容量为主。部分主板的M.2接孔仅提供PCIe x2通道，此会影响固态硬盘传输效能。
保修
安规认证	CE UKCA FCC BSMI KC RCM
保修	五年有限保修
保修政策	更多创见产品保修政策，请点选这里。如产品于保修范围内在SSD Scope的健康度显示为0%时，则不适用。自行拆卸散热片属于人为损坏，不给予保修。
系统需求
操作系统	Microsoft Windows 7 或更新版本 Linux Kernel 2.6.31或更新
备注	本固态硬盘仅兼容于搭载M key插槽的主机平台，不适合于B key插槽。插入不当可能导致设备异常。更多资讯，请点选这里。
技术
S.M.A.R.T.
智能回收算法 (Advanced Garbage Collection)
RAID Engine数据保护机制
LDPC除错机制
DRAM高速缓存
